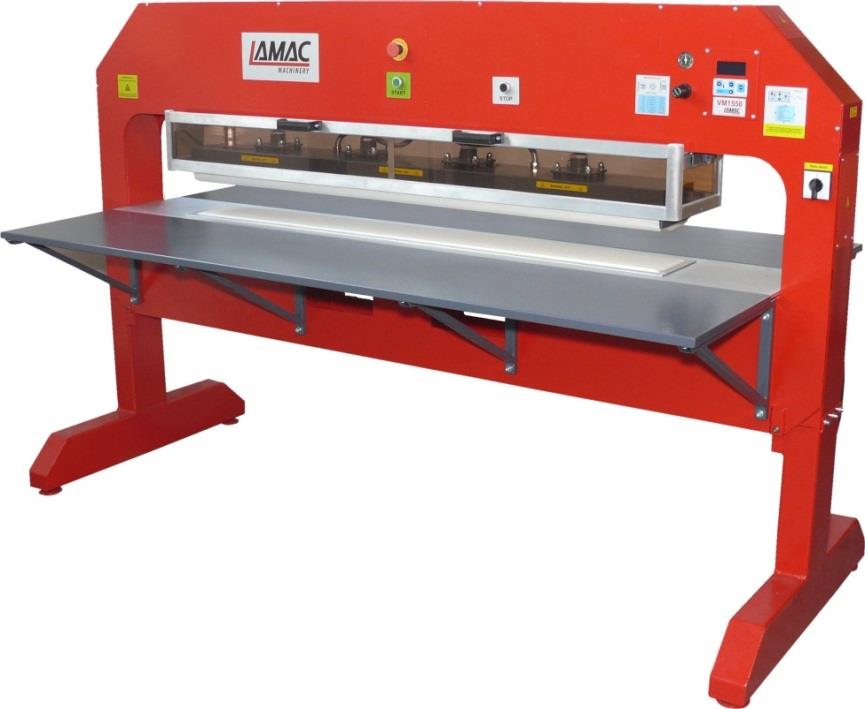

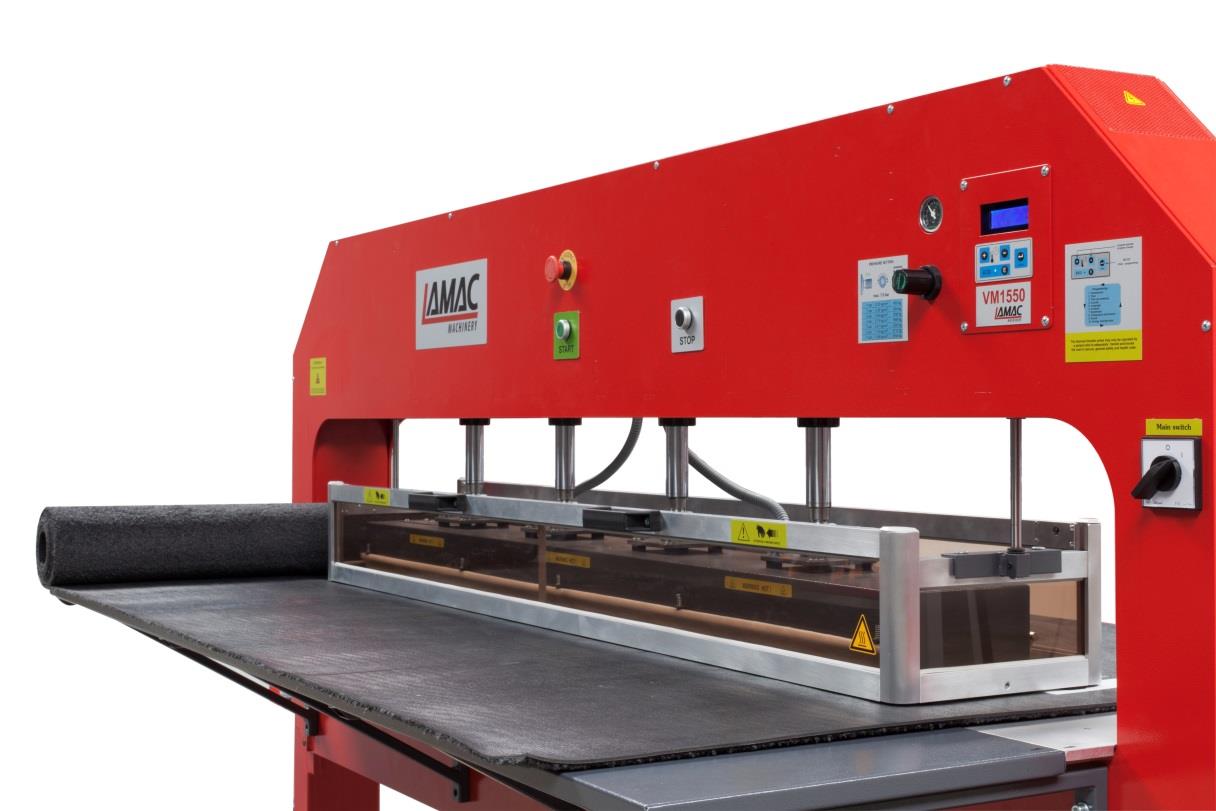

rubber press VM3100


  • Easy to use industrial press to cure and repair entrance mats.
  • One - unit machine and very robust construction.
  • The press dimensions are: W 4000 x D 1220 x H 1580mm.
  • Weight of the press : +/- 700kg.
  • The heating plate is 150 X 3100mm.
  • The heating plate has an area off 4650cm².
  • Additional plate capacity of 25 cm each side, for the repair of larger mats.
  • Upper heating plate is fitted with 8000W electrical heating elements.
  • Monitor with 10 programs for setting time, temperature and … .
  • Monitoring in 5 languages, error detection, self-diagnosis system and ECO-mode.
  • Simple operation with safety protection shield.
  • Pressure on product = 1.17kg/cm² at 6 bar.
  • Warm-up time: 15min.
  • Table for mat storage.
  • CE. Certified.
  • Compressed air max 7 bar.
  • Voltage 3 x 400V +N 50hz. (Main fuse 20A)
RFID Chip repair detailVM3100
